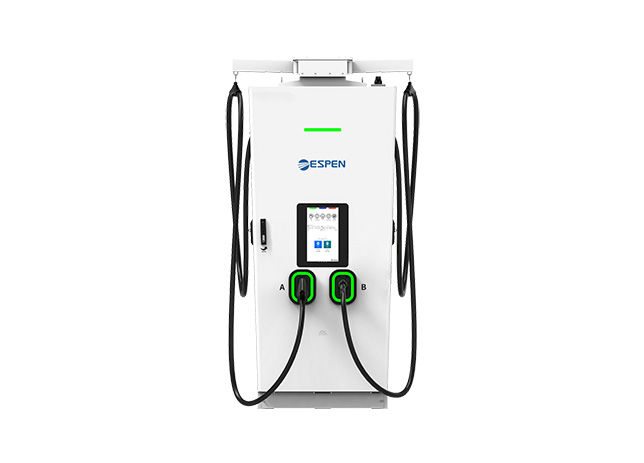

Level 3 DC Fast – 240kW Stand Alone, Commercial Use

Highway gas/service station
Parking garage
Commercial fleet operation
EV infrastructure operators and service providers
EV dealer workshops

Voltage Rating	3Φ480Vac(+10%,-10%)
Wiring	3P+ PE
Max. Input Current	350A
Input Protection	OVP, OCP, OPP, OTP, UVP, SPD
Max. Output Power	DC 240 kW
Output Voltage Range	50Vdc ~1000Vdc
Maximum Output Current	Natural Cooling CCS1 300A
Output Protection	SCP, OCP, OVP, LVP OTP, IMD
Power Factor	> 0.99
Peak Efficiency	> 96%
Cooling	Natural: Forced air
Standby Power	70W
Electrical Isolation	Isolation between Input and Output
Internal Protection	OTP, AC/DC contactor detection, Fuse detection
Max. Connectors per Unit	Dual
Supported Connector Types	CCS1, J3400 NACS
Cable Lengths	15 FT
Display	15 Inch Touchscreen
Communication	4G Cellular, Ethernet
Back-end Support	OCPP1.6J / OCPP2.0.1(Upgradable)
User Authentication	RFID, QR Code, Mobile APP, Mobile Payment, Optional Third Party Payment System (Credit card reader)
Remote Load Management	OCPP1.6J/OCPP2.0.1 (Upgradable)
Simultaneous Outputs	Dynamic Load distribution
Safety	UL2202. UL2231
FCC Compliant	YES
Ingress Protection	NEMA 3R
Anti-Vandalism	IK10
Dedicated Breaker Rating	400A Molded Case Circuit Breaker
Operational Temperature	-13°F - 122°F
Storage Temperature	-40°F - 158°F
Relative Humidity	5%-95% Rh, non-condensing
Altitude	< 6,560 FT (2000m)
Dimensions	(31.5~36.1) x 29.5 x 78.7 inches
Weight	1059lbs (480kg)

Model	Specification
EVC/D240/SN15/EG/W	EV Charger Level 3, 240KW, CCS1 and NACS Charge Handle Connectors (STANDARD) , RJ45 Ethernet, 4G Cellular with SIM Card, Mobile App, White Powder Coat Finish

Applications
